Grets 3M dome EW with quadrofilar antennas
EW for countering FPV UAVs operating in the 700-1050 MHz frequency band
In stock
122 000 uah.
-
+
Buy in one click
Add To Cart
Functions
The device “Grets 3M” is an EW tool designed to counter FPV drones operating in the 700-1050 MHz frequency range. It features three separate jamming bands, using either dome antennas, and can simultaneously jam all bands, blocking communication with the most popular FPV transmitters.
The EW “Grets 3M” is a reliable and effective solution for protection against drones. Due to its features and advantages, it becomes an indispensable tool for ensuring the safety of military facilities, infrastructure, and people.
The EW “Grets 3M” fills the airwaves with interference, preventing pilots from continuing their flight. The device is capable of jamming strike FPV drones at distances ranging from 70 m to 400 m. It can be powered by either 220V or 28V.
A key advantage of the model is its weight of 6 kg and compact body dimensions of 304x184x77 mm, making it easy to transport and store.
The model also operates within a wide temperature range from -30°C to +50°C. The housing is made from heat-dissipating materials and includes a cooling system to prevent overheating. The IP 54 protection rating keeps dust and moisture from entering the device.
Thanks to its features and advantages, the EW “Grets 3M” becomes an indispensable tool for ensuring the safety of military facilities, infrastructure, and people.
Technical characteristics:
| Parameter Name | Value |
|---|---|
| Frequency Range | 700-1050 MHz |
| Power Supply | From 220V or 28V |
| Number of Antennas | 3 pcs |
| Bracket for mounting 3 antennas on a vehicle or stand | 1 pc |
| Connection Cables for each frequency band | 3 pcs, 2 m each |
| Body Dimensions | 304x184x77 mm |
| Total Length When Assembled | 830 mm |
| Antenna Length | 600 mm |
| Total Power | (50+50+50) W |
| Power Consumption | (150+150+150) W |
| Effective Range | From 70 m to 400 m, depending on the distance to the enemy pilot, FPV drone frequency, and other factors |
| Weight (without battery) | 6 kg |

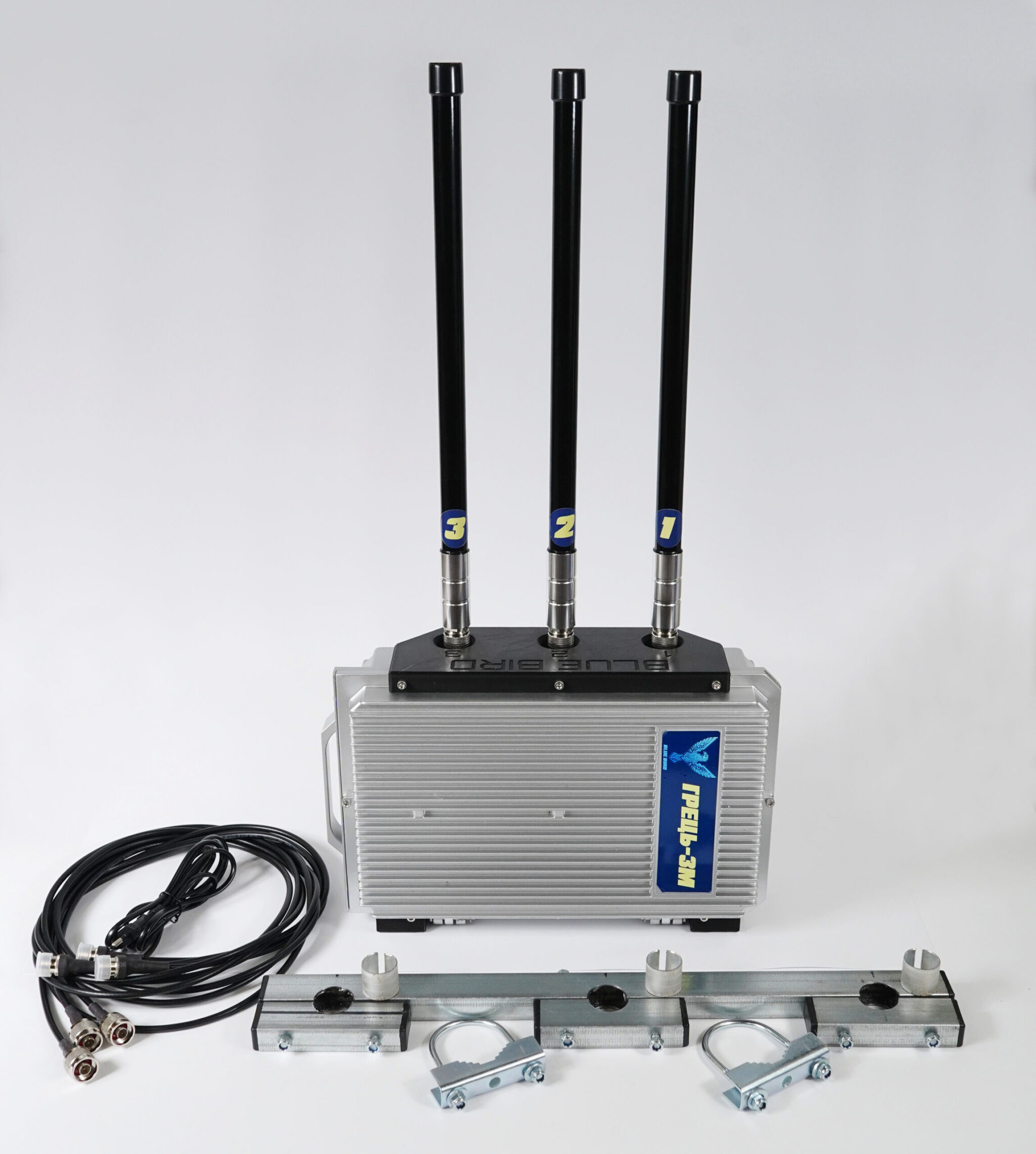

It Grets 3M dome EW with quadrofilar antennas includes:
| 1. The electronic warfare (EW) device. |
| 2. Three dome antennas operating in the 700-1050 MHz range. |
| 3. 220V power cable. |
| 4. Bracket for mounting three antennas on a vehicle or stand. |
| 5. Patch extension cables for each frequency band (3 pieces, 2 meters each). |
| 6. User manual: Hrets 3M. |
Optionally can be added:
| Parameter Name | Value |
|---|---|
| Springs for antenna mounting on a vehicle | 3 pcs |
| Remote control | 1 pc |
| Additional antennas | 3 pcs |
Installation Requirements
- Connection to an external power source: 220V or 28V (optional).
- Absence of physical damage to the device, antennas, and power supply cable.
- Proper connection of the corresponding included antennas.
- Antennas must be positioned vertically.
- Ambient temperature must not be lower than -30°C or higher than +50°C.
Delivery Methods
The primary delivery method is via Nova Poshta. We also ship via Ukrposhta or Meest Express.
Payment Methods
You can choose from several payment options:
-
Full Payment:
Pay for the order in full and collect it at the post office. -
Cash on Delivery:
Partial prepayment is required. If the item is not in stock, we start the production process. Afterward, we send the item and provide you with the tracking number. To collect the order from the post office, you will need to pay the remaining balance upon receipt. -
Partial Payment:
Reserve your order, and we begin the production process. Once your order is ready for shipment, you pay the remaining balance. We then send the item and provide you with the tracking number.
Advantages of Our Electronic Warfare Systems
- Affordable pricing.
- Covers the frequency ranges requested by the military, not outdated ranges from six months ago.
- Combined solution: adaptable for both vehicle-mounted and trench-based electronic warfare thanks to specialized springs and antennas.
- Selection of optimal antenna equipment to ensure the safety of various positions.
- Commitment to creating real dome-shaped protection.
- Thorough diagnostics of the equipment before shipment.
Return and Exchange Policy
Our company processes returns and exchanges in accordance with legal requirements.
Return Period:
Returns are accepted within 14 days of receipt (for items of proper quality).
Return Delivery:
Return shipping is carried out as per prior agreement.
In accordance with current legislation, you may return or exchange items of proper quality if:
- The item has not been used and shows no signs of use by the consumer, such as scratches, chips, scuffs, stains, etc.
- The item is fully complete, and the factory packaging is intact.
- The item retains its commercial appearance and consumer properties.
HOW DIFFERENT TYPES OF ANTENNAS WORK
Collinear antennas – on a moving object (Fig. A). The drone enters the effective range of the electronic warfare device while it is moving, unable to fly over the moving unit. They provide a greater range of interference propagation.
Dome-type antennas – on stationary positions (Fig. B). They provide better coverage over the protected object but have a shorter range.
PRODUCT DESCRIPTION:
Power supply:
The device operates on 220V and optionally on 28V, with separate inputs for both.
220V connection – IEC 60320 / C7 (figure eight), cable included.
28V connection – TX60 (yellow) – optional. Consultation required when ordering.
Controls:
The controls are buttons on the body for power and enabling each interference band separately or all at once.
- “Power” button – turns the power on/off.
- Lower position – turns the device on. If the “Power” button indicator is lit, the device is powered and ready for use.
- Upper position – turns the device off, indicator not lit.
- “1” button – turns the first interference band (700-820 MHz) on/off.
- Lower position – turns the band on. If the “1” button indicator is lit, the band is active.
- Upper position – turns the band off, indicator not lit.
- “2” button – turns the second interference band (800-920 MHz) on/off.
- Lower position – turns the band on. If the “2” button indicator is lit, the band is active.
- Upper position – turns the band off, indicator not lit.
- “3” button – turns the third interference band (900-1050 MHz) on/off.
- Lower position – turns the band on. If the “3” button indicator is lit, the band is active.
- Upper position – turns the band off, indicator not lit.
In standard models, button presses are accompanied by light indicators, but this may not be present in some versions.
